061F7519

Available: In Stock
Rs. 958.00
Please wait...
Your Inquiry has been sent! Our sales representative will contact you.

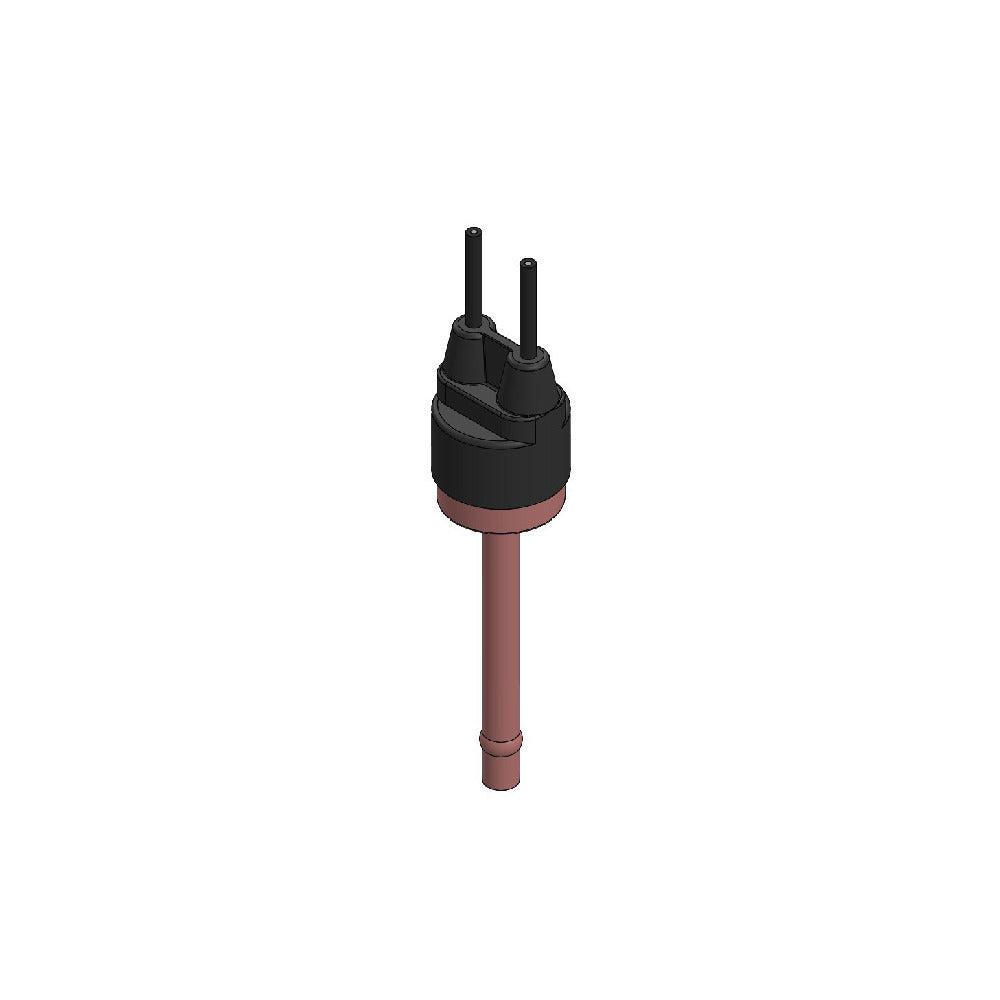

Danfoss ACB Cartridge Switch 2UA519W I/20 Part no.: 061F7519 is a versatile and reliable solution for pressure control in refrigeration and air conditioning systems. Its range of features, including fixed setpoints, reset options, and various port fittings, make it an efficient and adaptable component that reduces installation costs and saves space.

Specifications:

Reset Cut out Cut in Contact system / enclosure type W-water-proof types with cable (IP65) O-open (spade connector) types / no cable (IP00) Connection type
[bar] [psi] [bar] [psi] Solder Flare
6 mm 1⁄4 in 7⁄16-20 UNF with
depressure pin
Auto. 0.5 ± 0.4 / 7 ± 6 1.5 ± 0.5 / 22 ± 4 SPST-NO / W 061F7518
ACB-2UA518W
061F7519
ACB-2UA519W
061F7520
ACB-2UA520W
SPST-NO / O 061F7402
ACB-2UA152
061F7400
ACB-2UA150
SPDT / O 061F9106
ACB-2UC106
061F9102
ACB-2UC102
Auto. 0.7 ± 0.5 / 10 ± 7 1.7 ± 0.4 / 25 ± 6 SPST-NO / W 061F7521
ACB-2UA521W
061F7522
ACB-2UA522W
061F7523
ACB-2UA523W
SPDT / W 061F9058
ACB-2UC60W
Auto. 1.7 ± 0.5 / 25 ± 7 2.7 ± 0.4 / 39 ± 6 SPST-NO / W 061F7524
ACB-2UA524W
061F7525
ACB-2UA525W
061F7526
ACB-2UA526W
Auto. 2.2 ± 0.3 / 32 ± 4.5 3.4 ± 0.3 / 50 ± 4.5 SPST-NO / W 061F7418
ACB-2UA711W

Danfoss ACB Cartridge Switch 2UA519W I/20 Part no.: 061F7519 is a versatile and reliable solution for pressure control in refrigeration and air conditioning systems. Its range of features, including fixed setpoints, reset options, and various port fittings, make it an efficient and adaptable component that reduces installation costs and saves space.

Specifications:

Reset Cut out Cut in Contact system / enclosure type W-water-proof types with cable (IP65) O-open (spade connector) types / no cable (IP00) Connection type
[bar] [psi] [bar] [psi] Solder Flare
6 mm 1⁄4 in 7⁄16-20 UNF with
depressure pin
Auto. 0.5 ± 0.4 / 7 ± 6 1.5 ± 0.5 / 22 ± 4 SPST-NO / W 061F7518
ACB-2UA518W
061F7519
ACB-2UA519W
061F7520
ACB-2UA520W
SPST-NO / O 061F7402
ACB-2UA152
061F7400
ACB-2UA150
SPDT / O 061F9106
ACB-2UC106
061F9102
ACB-2UC102
Auto. 0.7 ± 0.5 / 10 ± 7 1.7 ± 0.4 / 25 ± 6 SPST-NO / W 061F7521
ACB-2UA521W
061F7522
ACB-2UA522W
061F7523
ACB-2UA523W
SPDT / W 061F9058
ACB-2UC60W
Auto. 1.7 ± 0.5 / 25 ± 7 2.7 ± 0.4 / 39 ± 6 SPST-NO / W 061F7524
ACB-2UA524W
061F7525
ACB-2UA525W
061F7526
ACB-2UA526W
Auto. 2.2 ± 0.3 / 32 ± 4.5 3.4 ± 0.3 / 50 ± 4.5 SPST-NO / W 061F7418
ACB-2UA711W
