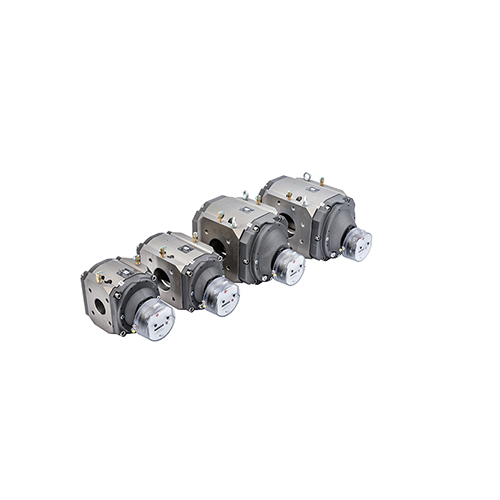

The Elster Rotary Gas meter RABO utilizes the rotary-type positive displacement
principle of operation which makes volumetric measurements by displacing
finite volumes of gas. The positive displacement occurs within a cavity
formed between the meter’s internal housing and its rotating impellers. The counter rotating impellers turn as a result of pressure drop across the meter’s inlet and outlet created as downstream gas is consumed. The
rotating impellers separate the flowing gas into small, finite, volumes and
are counted using a mechanical index.
| DN | Type | Qmax (M3/Hr) | Model |
| 32 | G16 | 25 | RABO G16 DN32 |
| 32 | G25 | 40 | RABO G25 DN32 |
| 32 | G40 | 65 | RABO G40 DN32 |
| 32 | G65 | 100 | RABO G65 DN32 |
| 40 | G16 | 25 | RABO G16 DN40 |
| 40 | G25 | 40 | RABO G25 DN40 |
| 40 | G40 | 65 | RABO G40 DN40 |
| 40 | G65 | 100 | RABO G65 DN40 |
| 50 | G16 | 25 | RABO G16 DN50 |
| 50 | G25 | 40 | RABO G25 DN50 |
| 50 | G40 | 65 | RABO G40 DN50 |
| 50 | G65 | 100 | RABO G65 DN50 |
| 50 | G100 | 160 | RABO G100 DN50 |
| 80 | G100 | 160 | RABO G100 DN80 |
| 80 | G160 | 250 | RABO G160 DN80 |
| 80 | G250 | 400 | RABO G250 DN80 |
| 100 | G160 | 250 | RABO G160 DN100 |
| 100 | G250 | 400 | RABO G250 DN100 |
| 100 | G400 | 650 | RABO G400 DN100 |
| 150 | G400 | 650 | RABO G400 DN150 |
