EXT-KA-SE100
- Product SKU: EXT-KA-SE100
- Category: Belimo, HVAC Controls, Sensors, Sensors & Switches for HVAC

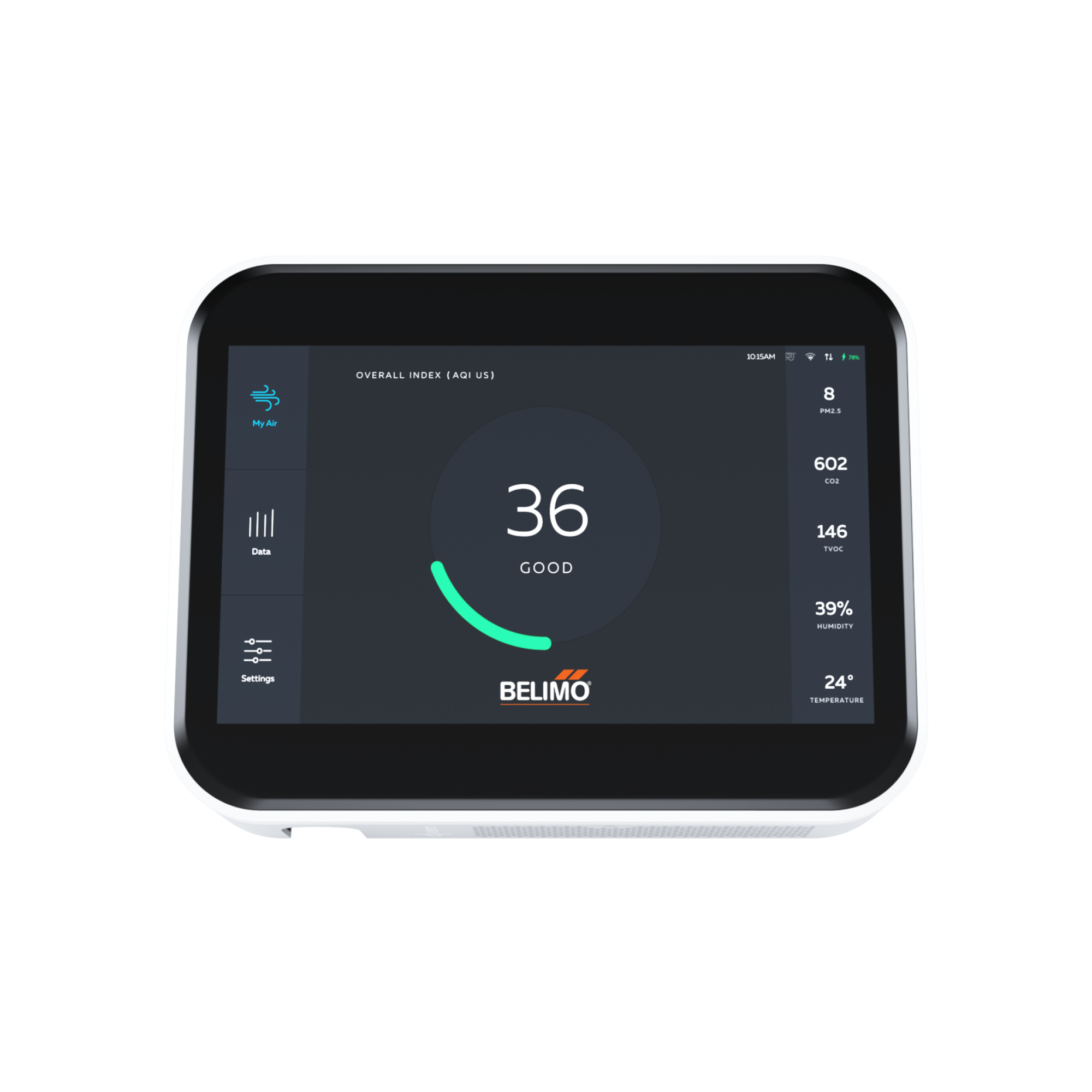

Belimo EXT-KA-SE100 Indoor Air Quality Sensor: Real-time measurements of Temperature, Humidity, CO₂, PM2.5, PM10, and Total Volatile Organic Compounds (TVOC). Achieve higher credits for prestigious building certifications such as LEED, WELL, and RESET.
It works on Battery 4.2V @5200 mAh
Specifications:
| Data bus communication | Communication | Modbus RTU Local and cloud MQTT Open API Cloud |
| Functional data | Coverage area | Area: 325 m² [3500 ft²] |
| Measuring data | Measured values | CO₂ TVOC PM2.5, PM10 Relative humidity Temperature |
| Specification Particulate Matter | Mesurement range | Mass concentration range: 0...1000μg/m³ PM2.5 mass concentration size range: 0.3...2.5 μg/m³ |
| Accuracy | ±3 μg/m³ (0to30μg/m³); ±10% m.v. (30...1000μg/m³) | |
| Typical response time | ≤10 s | |
| Sensor output resolution | 1μg/m³ | |
| Sensor technology | Laser particle sensor (light scattering) | |
| Specification TVOC | Mesurement range | 0...60000 ppb |
| Accuracy | ±15% ±8 ppb | |
| Typical startup time | 0.4 ms | |
| Sensor output resolution | 1 ppb | |
| Sensor technology | Multi-pixel metal oxide sensor (MOx) | |
| Specification CO₂ | Mesurement range | 400...2000 ppm Up to 10000 ppm extended range |
| Accuracy | ±3% m.v. ±50 ppm | |
| Typical response time | 120 s by 90% | |
| Sensor output resolution | 1 ppm | |
| Sensor technology | Non-dispersive infrared (NDIR) | |
| Specification Temperature | Mesurement range | -20...100°C |
| Accuracy | ±1°C | |
| Typical response time | >2 s | |
| Sensor output resolution | 0.01°C | |
| Long Term Drift | <0.03°C [0.054°F]/yr (under normal RH/T operating range) | |
| Specification Humidity | Mesurement range | 0...99% RH |
| Accuracy | ±5% RH | |
| Typical response time | >8 s (depends on the surrounding surface and the airflow in the final application environment) | |
| Sensor output resolution | 0.01% RH | |
| Long Term Drift | <0.25% RH/yr | |
| Safety data | EU Conformity | CE Marking |
| Ambient humidity | Max. 95% RH, non-condensing | |
| Ambient temperature | 0...50°C [32...122°F] |
