Lorric Clamp on type Ultrasonic Flowmeter FU-TX 310
Specifications :

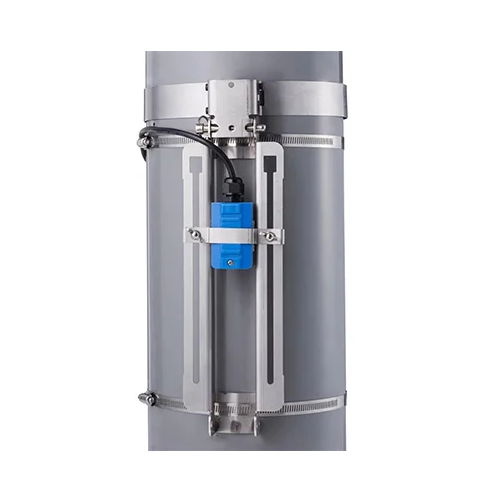

Installation method : Tube clamps
Measurement principle : Time differential
Flow rate range : ±0.1~20m/s
Measurement accuracy : < ±2 %
Response time : < 1 second
Resolution : 0.0001 m/s
Wired communication : Analog output 4-20mA, Modbus RS485 Two-line
Probe-to-host distance : TM-1: 10 meters (Up to 20 meters), TS-2 10 meters
Temperature measurement : Two sets of external PT1000
Device working temperature : -10~60°C (14~140°F)
Applicable fluid : Clean water, oil or chemical with minor impurities
Wall temperature : Standard probe:0~80°C, High temperature probe:0~150°C
Power consumption : < 2W
Transient flow : Instantaneous flow, flow velocity, time differential display
Cumulative flow : Positive and negative cumulative, net flow display
Units : Metric or Imperial units

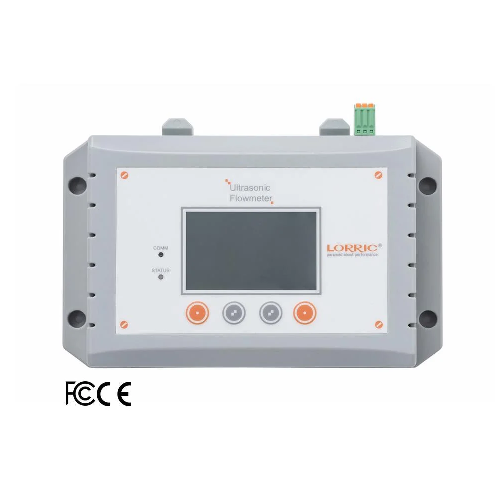

Display : 128 x 64 LCD backlight display
Operation button : 4 touch button
Security : Keyboard lock, power-loss data protection
Shell : ABS plastic, 145 x 90 x 45 mm
Power : 9~30VDC or 100-240 50 / 60Hz AC transformer
Temperature range : -100~300°C with 0.1°C resolution
Applicable pipe material : Cast iron, carbon steel, stainless steel, PVC pipe and other

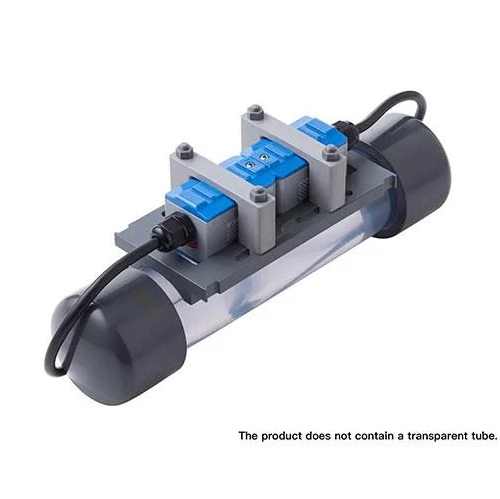

Applicable pipe diameter (mm) : TM-1 DN50-250 (2"~10"), TS-2 DN20-50 (¾" to 2")
Probe waterproof rating : General probe IP61
Glue probe : IP65
Waterproof resistance probe : IP68
