P-22RT-1900D-1
- Product SKU: P-22RT-1900D-1
- Category: Belimo, HVAC Controls, Sensors, Sensors & Switches for HVAC

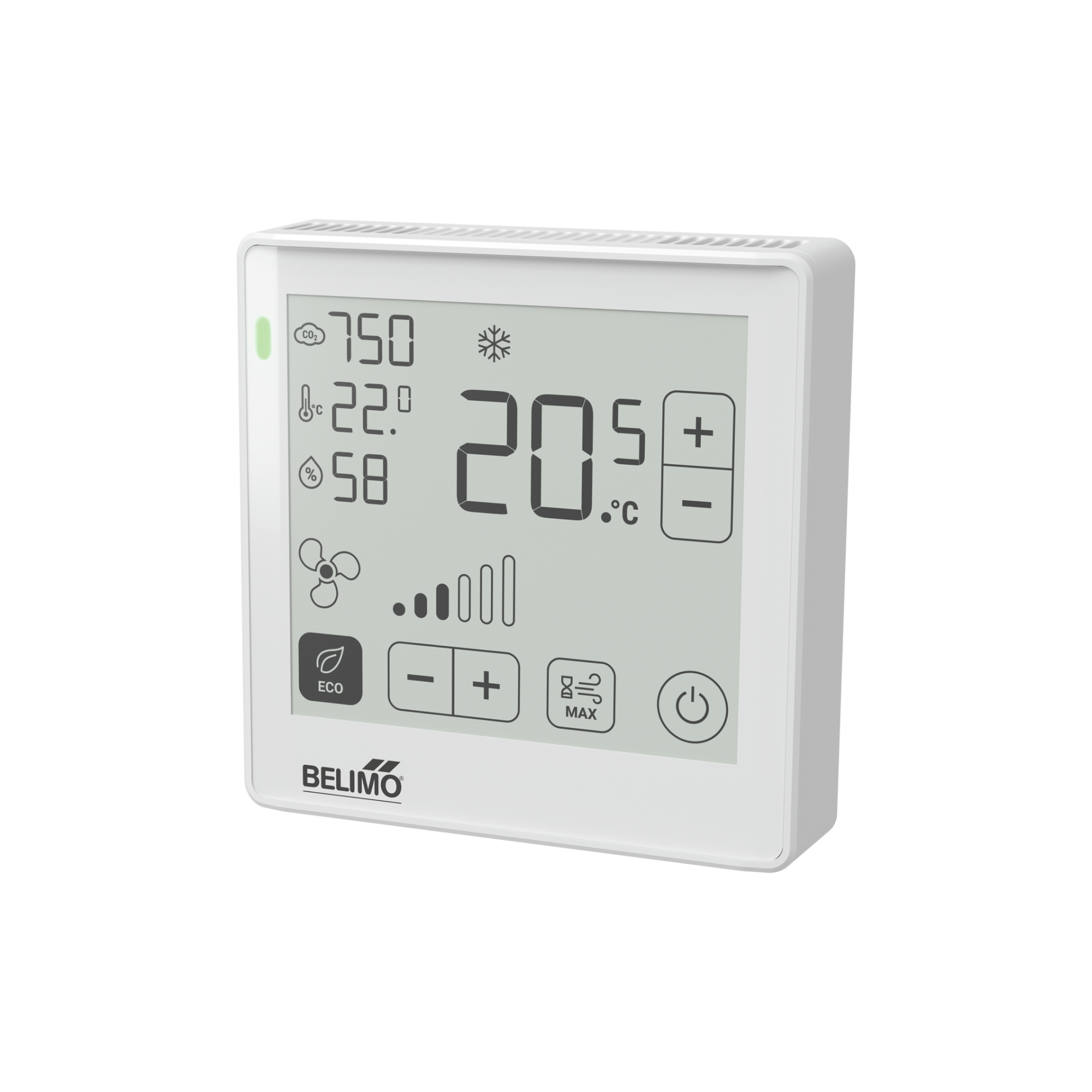

Belimo P-22RT-1900D-1 Room Operating Unit: Control CO₂, humidity, and temperature effortlessly with the Room Operating Unit. Intuitive touch display, seamless integration, and easy setup with Belimo Assistant App.
Models:
| Type | Communication | Voltage output | Measured values | Setpoint | Display type |
| P-22RTM-1900D-1 | MP-Bus | 3 x 0...5 V, 0...10 V, 2...10 V | CO2, Temperature, Relative Humidity, Dew Point |
Volumetric flow, Temperature | ePaper touch display and LED |
| P-22RTH-1900D-1 | MP-Bus |
3 x 0...5 V, 0...10 V, |
Temperature, Relative Humidity, Dew Point | Volumetric flow, Temperature | ePaper touch display |
| P-22RT-1900D-1 | MP-Bus |
2 x 0...5 V, 0...10 V, 2...10 V |
Temperature | Volumetric flow, Temperature | ePaper touch display |
Specifications:
| Electrical data | Nominal voltage | AC/DC 24 V |
| Nominal voltage range | AC 19.2...28.8 V / DC 19.2...28.8 V | |
| Power consumption AC | 1 VA | |
| Power consumption DC | 0.5 W | |
| Electrical connection | Spring loaded terminal 0.25...1.5 mm² | |
| Cable entry | Back side Top side Bottom side |
|
| Data bus communication | Communication | MP-Bus |
| Number of nodes | MP-Bus max. 8 (16) | |
| Functional data | Sensor Technology | CO₂: NDIR (non dispersive infrared) dual channel |
| Application | Air | |
| Voltage output | 2 x 0...5 V, 0...10 V, 2...10 V (Type P-22RT-1900D-1) 3 x 0...5 V, 0...10 V, 2...10 V (Type P-22RTH-1900D-1, P-22RTM-1900D-1) |
|
| Output signal active note | Output 0...5 V, 0...10 V (factory setting), 2...10 V selectable via NFC min. resistance 5 kΩ |
|
| Display | ePaper touch display and LED, 69x62 mm The LED is used for the CO₂ TLF (traffic light function). The LED can be parametrised and deactivated via Belimo Assistant App. (Type (P-)22RTM-..) | |
| Measuring data | Measured values | CO₂ Relative humidity Dew point Temperature |
| Measuring range CO₂ | Default setting: 0...2000 ppm | |
| Measuring range humidity | Default setting: 0...100% RH | |
| Measuring range temperature | Default setting: 0...50°C [32...122°F] | |
| Measuring range dew point | Default setting: -50...50°C [-60...120°F] | |
| Accuracy CO₂ | ±(50 ppm + 2% of measured value) | |
| Accuracy humidity | ±2% between 0...90% RH @ 25°C | |
| Accuracy temperature active | ±0.5°C @ 25°C [±0.9°F @ 77°F] | |
| Long-term stability | ±20 ppm p.a. ±0.25% RH p.a. @ 25°C @ 50% RH ±0.03°C p.a. @ 25°C [±0.05°F p.a. @ 77°F] |
|
| Materials | Housing | PC, white, RAL 9003 |
| Safety data | Protection class IEC/EN | III, Protective Extra-Low Voltage (PELV) |
| Degree of protection IEC/EN | IP30 | |
| EU Conformity | CE Marking | |
| Quality Standard | ISO 9001 | |
| Ambient humidity | Max. 95% RH, non-condensing | |
| Ambient temperature | 0...50°C [32...122°F] | |
| Storage temperature | -40...70°C [-40...160°F] |
Belimo P-22RT-1900D-1 Room Operating Unit: Control CO₂, humidity, and temperature effortlessly with the Room Operating Unit. Intuitive touch display, seamless integration, and easy setup with Belimo Assistant App.
Models:
| Type | Communication | Voltage output | Measured values | Setpoint | Display type |
| P-22RTM-1900D-1 | MP-Bus | 3 x 0...5 V, 0...10 V, 2...10 V | CO2, Temperature, Relative Humidity, Dew Point |
Volumetric flow, Temperature | ePaper touch display and LED |
| P-22RTH-1900D-1 | MP-Bus |
3 x 0...5 V, 0...10 V, |
Temperature, Relative Humidity, Dew Point | Volumetric flow, Temperature | ePaper touch display |
| P-22RT-1900D-1 | MP-Bus |
2 x 0...5 V, 0...10 V, 2...10 V |
Temperature | Volumetric flow, Temperature | ePaper touch display |
Specifications:
| Electrical data | Nominal voltage | AC/DC 24 V |
| Nominal voltage range | AC 19.2...28.8 V / DC 19.2...28.8 V | |
| Power consumption AC | 1 VA | |
| Power consumption DC | 0.5 W | |
| Electrical connection | Spring loaded terminal 0.25...1.5 mm² | |
| Cable entry | Back side Top side Bottom side |
|
| Data bus communication | Communication | MP-Bus |
| Number of nodes | MP-Bus max. 8 (16) | |
| Functional data | Sensor Technology | CO₂: NDIR (non dispersive infrared) dual channel |
| Application | Air | |
| Voltage output | 2 x 0...5 V, 0...10 V, 2...10 V (Type P-22RT-1900D-1) 3 x 0...5 V, 0...10 V, 2...10 V (Type P-22RTH-1900D-1, P-22RTM-1900D-1) |
|
| Output signal active note | Output 0...5 V, 0...10 V (factory setting), 2...10 V selectable via NFC min. resistance 5 kΩ |
|
| Display | ePaper touch display and LED, 69x62 mm The LED is used for the CO₂ TLF (traffic light function). The LED can be parametrised and deactivated via Belimo Assistant App. (Type (P-)22RTM-..) | |
| Measuring data | Measured values | CO₂ Relative humidity Dew point Temperature |
| Measuring range CO₂ | Default setting: 0...2000 ppm | |
| Measuring range humidity | Default setting: 0...100% RH | |
| Measuring range temperature | Default setting: 0...50°C [32...122°F] | |
| Measuring range dew point | Default setting: -50...50°C [-60...120°F] | |
| Accuracy CO₂ | ±(50 ppm + 2% of measured value) | |
| Accuracy humidity | ±2% between 0...90% RH @ 25°C | |
| Accuracy temperature active | ±0.5°C @ 25°C [±0.9°F @ 77°F] | |
| Long-term stability | ±20 ppm p.a. ±0.25% RH p.a. @ 25°C @ 50% RH ±0.03°C p.a. @ 25°C [±0.05°F p.a. @ 77°F] |
|
| Materials | Housing | PC, white, RAL 9003 |
| Safety data | Protection class IEC/EN | III, Protective Extra-Low Voltage (PELV) |
| Degree of protection IEC/EN | IP30 | |
| EU Conformity | CE Marking | |
| Quality Standard | ISO 9001 | |
| Ambient humidity | Max. 95% RH, non-condensing | |
| Ambient temperature | 0...50°C [32...122°F] | |
| Storage temperature | -40...70°C [-40...160°F] |
