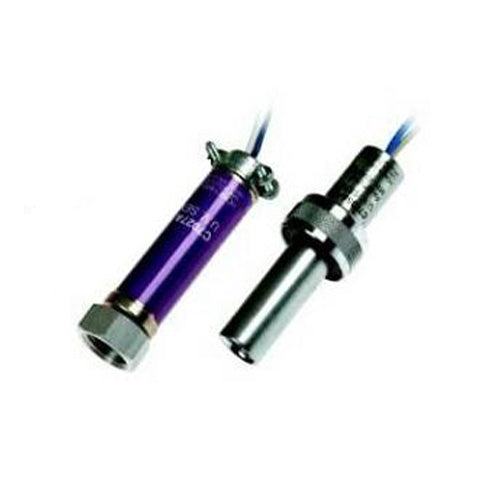

Honeywell UV Flame Sensor C7027
- Product SKU: C7027
- Category: Gas Burner Controls, Honeywell - Gas Burner Controls, UV Flame Sensors
Compact analogue UV flame sensor to detect ultraviolet radiations emitted by combustion flames.
Used with Honeywell burner controls to provide flame supervision for commercial and industrial burner applications.
Approvals: CE approved according to EN298, only in combination with matching Honeywell flame amplifiers and burner controls.
UL/CSA approved for USA, only in combination with matching Honeywell flame amplifiers and burner controls.
AGA approved for Australia, only in combination with matching Honeywell flame amplifiers and burner controls.
Only for intermittent operation. The burner has to recycle at least once per 24 hours.
Models marked "DIN Approved Model" have no CSA/UL marking on the product label and have an insulated cable instead of wires.
Maximum recommended cable length: ca. 50m
Features: Rugged, compact, with encapsulated sensing tube for maximum protection.
Quick and easy installation on standard sight pipe.
Detects UV radiation in the 310nm range of the spectrum.
C7027 with clamp type connector
Mechanical connection: 1/2"
Cable length: 2,4m
Ambient temperature: -18...102C
Protection class: IP54
Compact analogue UV flame sensor to detect ultraviolet radiations emitted by combustion flames.
Used with Honeywell burner controls to provide flame supervision for commercial and industrial burner applications.
Approvals: CE approved according to EN298, only in combination with matching Honeywell flame amplifiers and burner controls.
UL/CSA approved for USA, only in combination with matching Honeywell flame amplifiers and burner controls.
AGA approved for Australia, only in combination with matching Honeywell flame amplifiers and burner controls.
Only for intermittent operation. The burner has to recycle at least once per 24 hours.
Models marked "DIN Approved Model" have no CSA/UL marking on the product label and have an insulated cable instead of wires.
Maximum recommended cable length: ca. 50m
Features: Rugged, compact, with encapsulated sensing tube for maximum protection.
Quick and easy installation on standard sight pipe.
Detects UV radiation in the 310nm range of the spectrum.
C7027 with clamp type connector
Mechanical connection: 1/2"
Cable length: 2,4m
Ambient temperature: -18...102C
Protection class: IP54
