22PF-1UE
- Product SKU: 22PF-1UE
- Category: Belimo, HVAC Controls, Sensors & Switches for HVAC

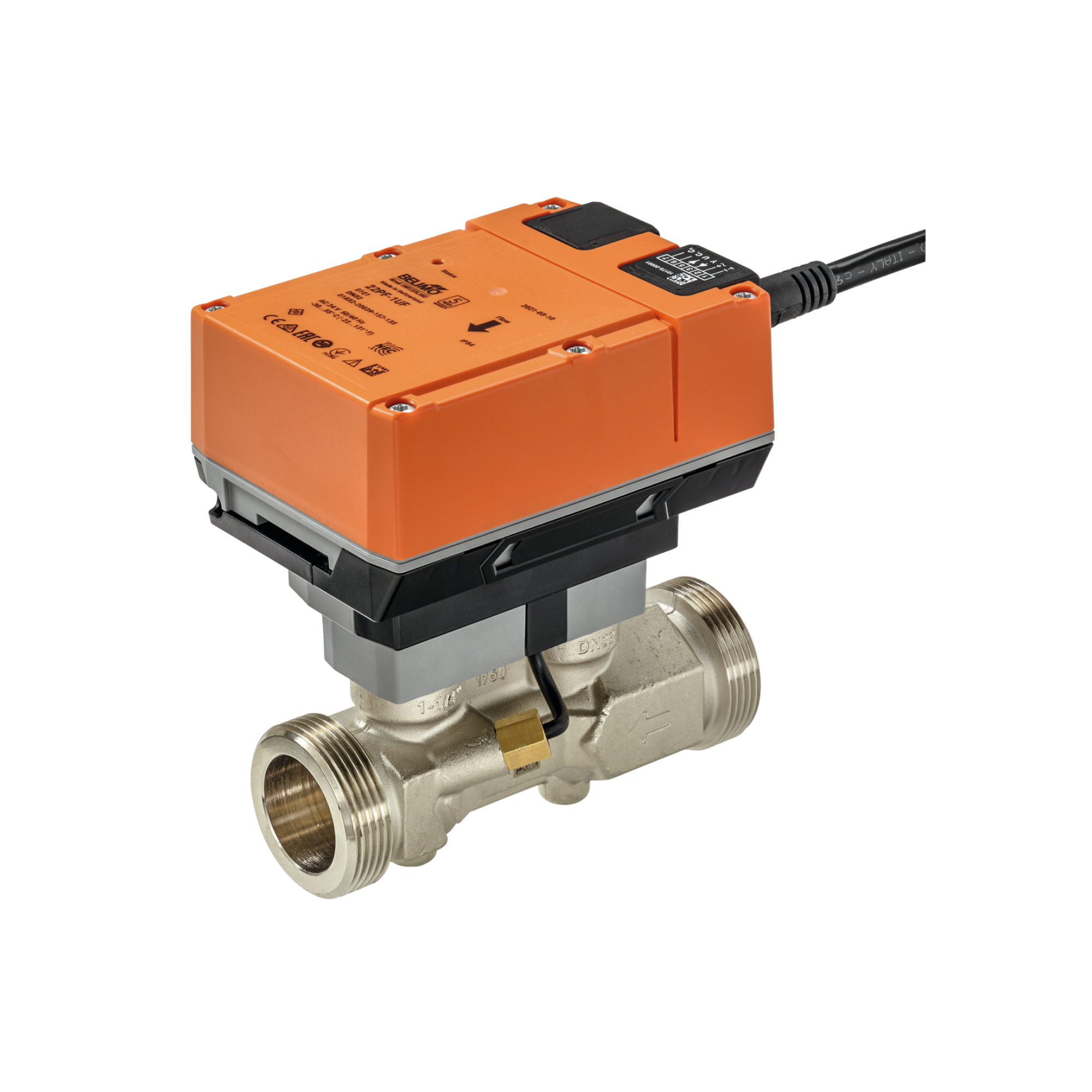

Belimo Ultrasonic Flow Sensor 22PF-1UE: Accurate glycol content and flow rate measurement for closed water systems. Versatile, easy setup with Belimo Assistant App via NFC technology. Choose from multiple communication options for seamless integration.
Size and Flow Rate:
Type | DN | G ["] | FS [l/s] | FS [m³/h] |
kvs theor.[m³/h] |
PN |
22PF-1UC | 15 | 3/4 | 0.5 | 1.8 | 3.9 | 25 |
22PF-1UD | 20 | 1 | 0.83 | 3 | 7.2 | 25 |
22PF-1UE | 25 | 1 1/4 | 1.17 | 4.2 | 13.2 | 25 |
22PF-1UF | 32 | 1 1/2 | 2 | 7.2 | 16 | 25 |
22PF-1UG | 40 | 2 | 3.33 | 12 | 23.6 | 25 |
22PF-1UH | 50 | 2 1/2 | 5 | 18 | 32 | 25 |
Specifications:
Electrical data | Nominal voltage | AC/DC 24 V |
Nominal voltage frequency | 50/60 Hz | |
Nominal voltage range | AC 19.2...28.8 V / DC 21.6...28.8 V | |
Power consumption AC | 2.2 VA | |
Power consumption DC | 1.1 W | |
Connection supply | Cable , 6 x 0.75 mm² | |
Data bus communication | Communication | BACnet MS/TP |
Modbus RTU | ||
MP-Bus | ||
Number of nodes | BACnet / Modbus see interface description | |
MP-Bus max. 8 (16) | ||
Functional data | Application | Water |
Water-glycol mixture | ||
Parametrization | via NFC, Belimo Assistant App | |
Voltage output | 1 x 0...10 V, 0.5...10 V, 2...10 V or user defined | |
Output signal active note | DC 0...10 V (factory setting), selectable via NFC | |
max. load 1 mA | ||
User defined: | ||
- Lower limit: 0...8 V | ||
- Upper limit: 2...10 V | ||
Pipe connection | External thread according to ISO 228-1 | |
Installation position | upright to horizontal | |
Servicing | maintenance-free | |
Measuring data | Measured values | Flow |
Temperature | ||
Measuring fluid | Water and water-glycol mixtures | |
Measuring principle | Ultrasonic volumetric flow measurement | |
Measuring accuracy flow | ±2% (of 20...100% FS) @ 20°C / glycol 0% vol. | |
Measuring accuracy flow note | Additional information on measuring accuracy | |
(with diagram) can be found in the section | ||
"Measuring accuracy". | ||
Min. flow measurement | 0.2% of FS | |
Materials | Fluid wetted parts | Brass nickel-plated, Brass, Stainless steel, |
Aramid fibre, PEEK, EPDM | ||
Flow measuring pipe | Brass body nickel-plated | |
Safety data | Protection class IEC/EN | III, Protective Extra-Low Voltage (PELV) |
Degree of protection IEC/EN | IP54 | |
Degree of protection NEMA/UL | NEMA 2 | |
EMC | CE according to 2014/30/EU | |
Certification IEC/EN | IEC/EN 60730-1:11 and IEC/EN 60730-2-15:10 | |
Quality Standard | ISO 9001 | |
Type of action | Type 1 | |
Rated impulse voltage supply | 0.8 kV | |
Pollution degree | 3 | |
Ambient humidity | Max. 95% RH, non-condensing | |
Ambient temperature | -30...55°C [-22...130°F] | |
Fluid temperature | -20...120°C [-5...250°F] | |
At a fluid temperature of < 2°C [< 36°F], frost | ||
protection must be guaranteed |
