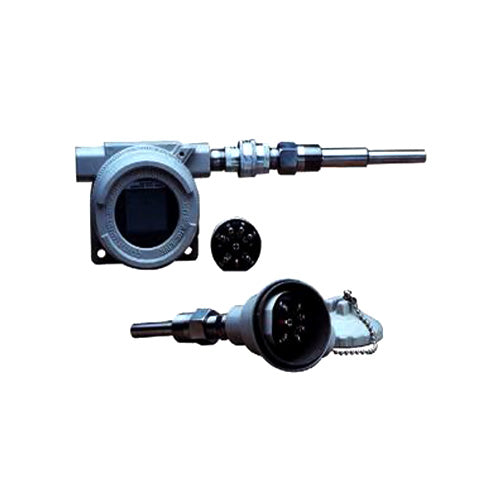

Honeywell Smart Temperature Transmitter STT25H
- Product SKU: STT25H
- Category: Honeywell Smart Transmitters, Temperature Sensors
Honeywell’s STT 3000 family of microprocessor based smart temperature transmitters includes both the Series STT250 described in this specification sheet and the higher performance STT350 described in Product Specification Sheet EN0I-5222. The STT350 offers high performance and advanced functionality. The STT250 units offer competitive performance in a more compact module and with a wider range of smart communications protocols.
• STT25H with HART™ protocol when this popular protocol is preferred. Configuration of the HART unit can be made with any of the listed HART Communication Foundation tools.
• STT25S with HART 6 protocol and TUV SIL 2 approval. Configuration of the HART unit can be made with any of the listed HART tools
• STT25M for 4-20mA operation and local/ remote configuration via Honeywell’s digital DE protocol from the Smart Field Communicator (SFC) or Smart Configuration Toolkit PC based software (SCT).
• STT25D with digital DE protocol for either 4-20mA operation or digital integration into the TDC 3000™/ TPS 3000™ control system. Note that the latest addition to the STT250 family is the Dual Input STT25T. The two sensor inputs may be used for sensor cross checking or for sensor redundancy. This is described in separate Product Specification Sheet EN0I-6091. All units support the same wide range of primary sensor types, are 2 wire powered and give an output linerarized to temperature over the 2 power wires. Lead wire compensation is provided for RTD (Resistance Temperature Detectors) and internal digital cold junction compensation is provided for Thermocouples,.Millivolt and Ohms sensor inputs can also be accepted.
Features
• Smart communication protocols available include HART or DE Honeywell.
• Direct sensor head mounting in DIN Form A housing. Housing materials available include plastic, aluminum, 316SS and cast iron.
• Mounting options include wall, pipe, DIN rail or direct sensor head mounting with or without a housing.
• Single model accepts input signal from a wide choice of primary sensors to satisfy varying application requirements with minimum transmitter inventory.
• Suitable for 4, 3 or 2 wire Pt100 and Pt200 RTD measurement.
• Hard wired upscale/ downscale failsafe link to ensure secure operation in the event of a failure.
• Open circuit sensor analysis carried out in every measurement cycle.
• Selectable latching/non-latching failsafe operation for open circuit sensor.
• Integral analogue or digital indication meter option.
• Analogue to Digital converter validated frequently
Honeywell’s STT 3000 family of microprocessor based smart temperature transmitters includes both the Series STT250 described in this specification sheet and the higher performance STT350 described in Product Specification Sheet EN0I-5222. The STT350 offers high performance and advanced functionality. The STT250 units offer competitive performance in a more compact module and with a wider range of smart communications protocols.
• STT25H with HART™ protocol when this popular protocol is preferred. Configuration of the HART unit can be made with any of the listed HART Communication Foundation tools.
• STT25S with HART 6 protocol and TUV SIL 2 approval. Configuration of the HART unit can be made with any of the listed HART tools
• STT25M for 4-20mA operation and local/ remote configuration via Honeywell’s digital DE protocol from the Smart Field Communicator (SFC) or Smart Configuration Toolkit PC based software (SCT).
• STT25D with digital DE protocol for either 4-20mA operation or digital integration into the TDC 3000™/ TPS 3000™ control system. Note that the latest addition to the STT250 family is the Dual Input STT25T. The two sensor inputs may be used for sensor cross checking or for sensor redundancy. This is described in separate Product Specification Sheet EN0I-6091. All units support the same wide range of primary sensor types, are 2 wire powered and give an output linerarized to temperature over the 2 power wires. Lead wire compensation is provided for RTD (Resistance Temperature Detectors) and internal digital cold junction compensation is provided for Thermocouples,.Millivolt and Ohms sensor inputs can also be accepted.
Features
• Smart communication protocols available include HART or DE Honeywell.
• Direct sensor head mounting in DIN Form A housing. Housing materials available include plastic, aluminum, 316SS and cast iron.
• Mounting options include wall, pipe, DIN rail or direct sensor head mounting with or without a housing.
• Single model accepts input signal from a wide choice of primary sensors to satisfy varying application requirements with minimum transmitter inventory.
• Suitable for 4, 3 or 2 wire Pt100 and Pt200 RTD measurement.
• Hard wired upscale/ downscale failsafe link to ensure secure operation in the event of a failure.
• Open circuit sensor analysis carried out in every measurement cycle.
• Selectable latching/non-latching failsafe operation for open circuit sensor.
• Integral analogue or digital indication meter option.
• Analogue to Digital converter validated frequently
