STD725-E1AC4AS-1-0-AHS-11C-B-11A0-F1-0000

Add Your Review

Available: In Stock

Product SKU: STD725E1AC4AS10AHS11CB11A0F10000
Category: Honeywell Smart Transmitters

Rs. 45,000.00

Quantity

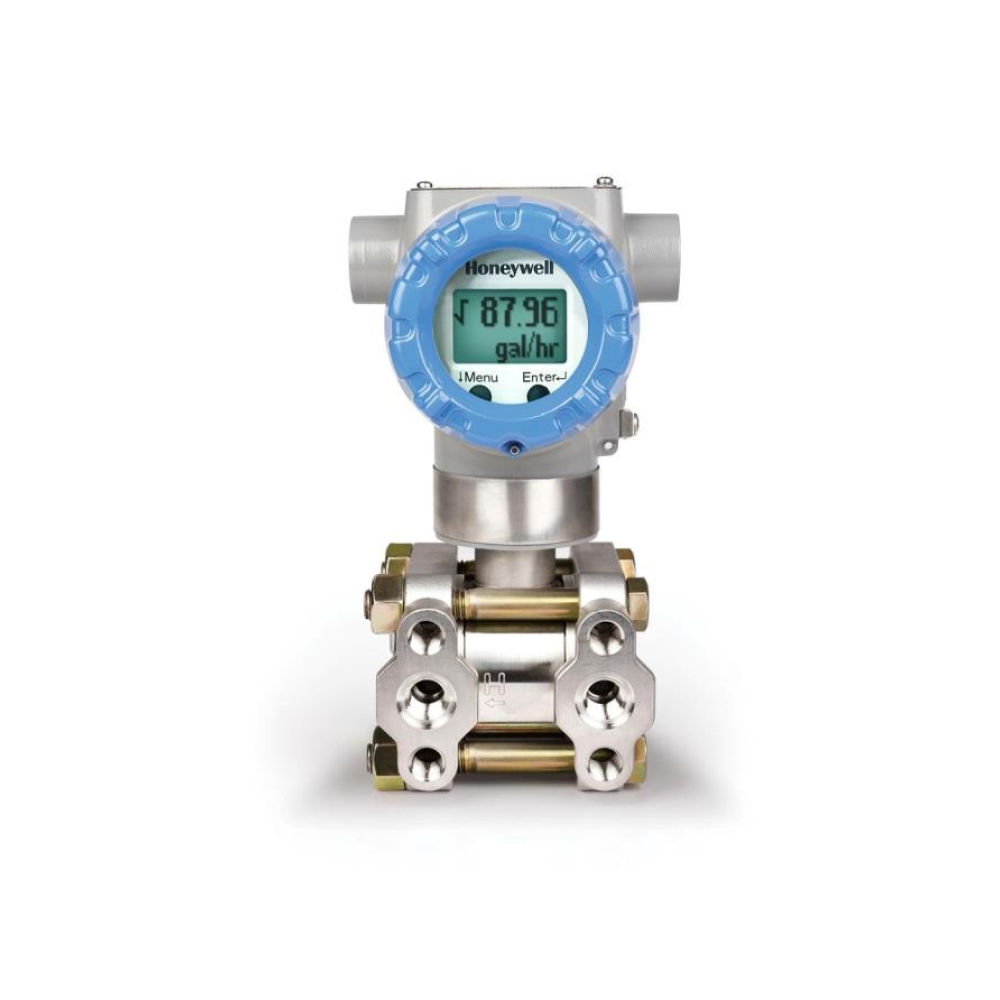

Honeywell Smart Differential Pressure Transmitter series STD725 is suitable for monitoring, control and data acquisition. This product features piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures.

Specifications:

Product type : STD700 Differential Pressure Transmitter
Measurement Range : 400/(1000) URL, -400/(-1000) LRL, 400/(1000) Max span, 4.0 (10) Min span, H2O (mbar) units.
E : Process Head Material = 316 Stainless Steel, Diaphragm Material = 316L Stainless Steel.
1 : Fill Fluid = Silicone Oil 200
A : Process Connection = None, None (1/4" NPTF female thread Std)
C : Bolt/Nut Materials = Carbon Steel
4 : Head type = Dual Ended, Vent Type = Standard Vent, Location = End, Vent Material = Matches Head Material
A : Gasket Material = Teflon® or PTFE (Glass Filled)
S : Static Pressure = Standard Static Pressure - 4500 psig (315 bar)
1 : Head/Connect Orientation = Standard, High Side Left, Low Side Right2 / Std Head Orientation
0 : Approvals = No Approvals Required
A : Electronic Housing Material & Connection Type = Polyester Powder Coated Aluminum, 1/2 NPT
H : Output/ Protocol = 4-20mA dc, HART Protocol
S : Indicator = Zero,Span & Config Buttons), Ext Zero, Span & Config Buttons = None, Languages = English.
1 : Application Software = Standard Diagnostics
1 : Write Protect = Disabled, Fail Mode = High> 21.0mAdc, High & Low Output Limits = Honeywell Std (3.8 - 20.8 mAdc).
C : General Configuration = Custom Configuration (Unit Data Required from customer)
B : Accuracy = standard, Calibrated Range = Custom (Unit Data Required), Calibration Qty = Single Calibration
1 : Mounting Bracket = Angle Bracket, Carbon Steel
1 : Customer Tag = One Wired Stainless Steel Tag (Up to 4 lines 26 char/line)
A0 : Unassembled Conduit Plugs & Adapters = No Conduit Plugs or Adapters Required
F1 : Certifications & Warranty = Calibration Test Report & Certificate of Conformance
0000 : Factory = Factory Identification

Product type : STD700 Differential Pressure Transmitter
Measurement Range : 400/(1000) URL, -400/(-1000) LRL, 400/(1000) Max span, 4.0 (10) Min span, H2O (mbar) units.
E : Process Head Material = 316 Stainless Steel, Diaphragm Material = 316L Stainless Steel.
1 : Fill Fluid = Silicone Oil 200
A : Process Connection = None, None (1/4" NPTF female thread Std)
C : Bolt/Nut Materials = Carbon Steel
4 : Head type = Dual Ended, Vent Type = Standard Vent, Location = End, Vent Material = Matches Head Material
A : Gasket Material = Teflon® or PTFE (Glass Filled)
S : Static Pressure = Standard Static Pressure - 4500 psig (315 bar)
1 : Head/Connect Orientation = Standard, High Side Left, Low Side Right2 / Std Head Orientation
0 : Approvals = No Approvals Required
A : Electronic Housing Material & Connection Type = Polyester Powder Coated Aluminum, 1/2 NPT
H : Output/ Protocol = 4-20mA dc, HART Protocol
S : Indicator = Zero,Span & Config Buttons), Ext Zero, Span & Config Buttons = None, Languages = English.
1 : Application Software = Standard Diagnostics
1 : Write Protect = Disabled, Fail Mode = High> 21.0mAdc, High & Low Output Limits = Honeywell Std (3.8 - 20.8 mAdc).
C : General Configuration = Custom Configuration (Unit Data Required from customer)
B : Accuracy = standard, Calibrated Range = Custom (Unit Data Required), Calibration Qty = Single Calibration
1 : Mounting Bracket = Angle Bracket, Carbon Steel
1 : Customer Tag = One Wired Stainless Steel Tag (Up to 4 lines 26 char/line)
A0 : Unassembled Conduit Plugs & Adapters = No Conduit Plugs or Adapters Required
F1 : Certifications & Warranty = Calibration Test Report & Certificate of Conformance
0000 : Factory = Factory Identification
