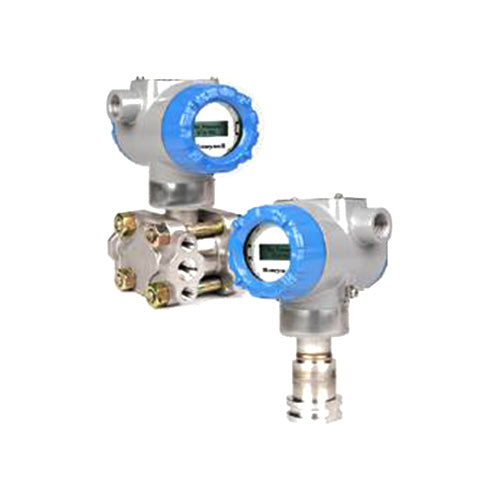

STG740
- Product SKU: STG740
- Category: Honeywell Smart Transmitters, Pressure Sensors
Best in Class Features:
o Accuracy up to 0.065 % of calibrated span
o Stability up to 0.02% of URL per year for five years
o Automatic temperature compensation
o Rangeability up to 100:1
o Response times as fast as 100ms
o Alphanumeric display capabilities
o External zero, span, & configuration capability
o Polarity insensitive electrical connections
o On-board diagnostic capabilities
o Integral Dual Seal design for safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
o Full compliance to SIL 2/3 requirements as a standard.
o Modular design characteristics
Description
The SmartLine family pressure transmitters are designed around a high performance piezo-resistive sensor. This one sensor actually integrates multiple sensors linking process pressure measurement with on-board static pressure (DP Models) and temperature compensation measurements. This level of performance allows the ST 700 to replace most competitive transmitters available today.
Indication/Display Option
The ST 700 modular design accommodates a basic alphanumeric LCD display.
Basic Alphanumeric LCD Display Features
o Modular (may be added or removed in the field)
o 0, 90,180, & 270 degree position adjustments
o Pa, KPa, MPa, KGcm2, Torr, ATM, i4H2O, mH2O, bar, mbar, inH2O, inHG, FTH2O, mmH2O, mm HG, & psi measurement units
o 2 Lines 16 Characters (4.13H x 1.83W mm)
o Square root output indication ()
Diagnostics
SmartLine transmitters all offer digitally accessible diagnostics which aid in providing advanced warning of possible failure events minimizing unplanned shutdowns, providing lower overall operational costs.
Configuration Tools
Integral Three Button Configuration Option
Suitable for all electrical and environmental requirements, SmartLine offers the ability to configure the transmitter and display via three externally accessible buttons when a display option is selected. Zero/span capabilities are also optionally available via these buttons with or without selection of the display option.
Hand Held Configuration
SmartLine transmitters feature two-way communication and configuration capability between the operator and the transmitter. This is accomplished via Honeywell’s field-rated Multiple Communication Configurator (MCT202). The MCT202 is capable of field configuring DE and HART Devices and can also be ordered for use in intrinsically safe environments. All Honeywell transmitters are designed and tested for compliance with the offered communication protocols and are designed to operate with any properly validated hand held configuration device.
Personal Computer Configuration
Honeywell’s SCT 3000 Configuration Toolkit provides an easy way to configure Digitally Enhanced (DE) instruments using a personal computer as the configuration interface. Field Device Manager (FDM) Software and FDM Express are also available for managing HART & Fieldbus device configurations.
System Integration
o SmartLine communications protocols all meet the most current published standards for HART/DE/Fieldbus.
o Integration with Honeywell’s Experion PKS offers the following unique advantages.
o Tamper reporting
o FDM Plant Area Views with Health summaries
o All ST 700 units are Experion tested to provide the highest level of compatibility assurance
Modular Design
To help contain maintenance & inventory costs, all ST 700 transmitters are modular in design supporting the user’s ability to replace meter bodies, add indicators or change electronic modules without affecting overall performance or approval body certifications. Each meter body is uniquely characterized to provide in-tolerance performance over a wide range of application variations in temperature and pressure and due to the Honeywell advanced interface, electronic modules may be swapped with any electronics module without losing in-tolerance performance characteristics.
Modular Features
o Meter body replacement
o Exchange/replace electronics/comms modules*
o Add or remove integral indicator*
o Add or remove lightning protection (terminal connection)*
* Field replaceable in all electrical environments (including IS) except flameproof without violating agency approvals.
With no performance effects, Honeywell’s unique modularity results in lower inventory needs and lower overall operating costs.
