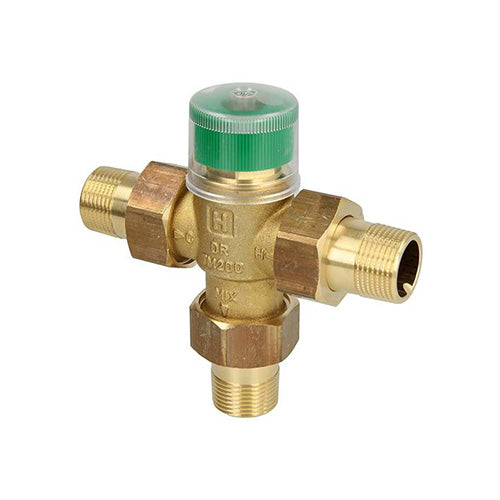

TM200 Thermostatic Mixing Valve
- Product SKU: TM200 Thermostatic Mixing Valve
- Category: Honeywell - HVAC Controls, HVAC Controls, Manual Valves
• Highly sensitive thermal element with good all-round watertemperature sensing, even at low flow rates
• Simple setting of the required water temperature
• Scald protection - the hot water inlet is automatically cut off if the cold supply fails provided that the hot water inlet temperature is at least 10 K higher than that of mixed water setting
• The cold water inlet is automatically cut off if the hot supply fails
• Inner components are of scale-resistant materials
• Complies with KTW requirements
Range of Application
Flow medium:Water
Operating pressure Maximum: 10 bar
Maximum pressure difference between hot and cold inlet supplies: 2.5 bar
Technical Data
Installation orientation: As required
Hot water inlet temperature: Maximum 90 °C
Connection sizes: R 3/4" or Ø 22 mm
Setting range: 30 °C - 60 °C Set during manufacture 40 °C
Flow rate at 1.0 bar pressure differential across valve approximately: 27 litres / min
Control accuracy: < ± 4 K
• Highly sensitive thermal element with good all-round watertemperature sensing, even at low flow rates
• Simple setting of the required water temperature
• Scald protection - the hot water inlet is automatically cut off if the cold supply fails provided that the hot water inlet temperature is at least 10 K higher than that of mixed water setting
• The cold water inlet is automatically cut off if the hot supply fails
• Inner components are of scale-resistant materials
• Complies with KTW requirements
Range of Application
Flow medium:Water
Operating pressure Maximum: 10 bar
Maximum pressure difference between hot and cold inlet supplies: 2.5 bar
Technical Data
Installation orientation: As required
Hot water inlet temperature: Maximum 90 °C
Connection sizes: R 3/4" or Ø 22 mm
Setting range: 30 °C - 60 °C Set during manufacture 40 °C
Flow rate at 1.0 bar pressure differential across valve approximately: 27 litres / min
Control accuracy: < ± 4 K
